ThermoPro Front Doors
Hormann Thermo46 and Thermo65
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Hormann have an excellent reputation for making high quality products.
Their technical support, service and warranty
backup are all outstanding. As a result, this gives us the reasurance that we are
selling a good product, with good warranties, that isn't going to let you
down. A fantastic product from
Hormann, the Thermo46 and Thermo65 front doors are a
smash hit! Very high security 12-point locking, high thermal
properties and with prices from £1100 inc VAT and delivery.... that's
hard to believe. Both modern contemporary and classic designs are available with sizes to suit standard UK openings and also made to measure sizes available to special order.
Great in their own right, they are also an excellent match for Hormann's high security, no compromise sectional garage doors or garage personnel doors.
Side Elements and Transom Light (window at the top) are also available. |
|
So what is the difference between a Thermo46 (TPS) and a Thermo65 (THP)?
The main difference is the thickness and therefore u-value. ThermoPro's are 46mm thick with u-values down to 1.1w/(m2k)using an frame frame with thermal break and double glazed Side Elements, whereas the ThermoPlus is 65mm thick with u-values down to 0.87w/(m2k) and has a frame with an insulated portion within it and Side Elements which are triple glazed. Security is excellent on both doors but the hinge side of the ThermoPlus door leaf fully engages into it's frame. Lastly a few extra options are available on the ThermoPlus - inside and outside differing colours, etc.
Different door designs are constructed in slightly different ways...
TPS100, 200,
400 & THP100, 410, 430, 450:
Steel door leaf with Aluminium frame with double glazed insulated
windows. Polycarbonate glazing surrounds and stainless steel fixed
handles.
TPS010, 015, 515, 020, 025, 030, 040 & THP010, 015, 515:
Steel door leaf with Aluminium frame with double glazed insulated
windows. Polycarbonate glazing surrounds and small stainless steel fixed
handles.
TPS700, 750, 900 & THP700, 750, 800, 810, 850, 900:
Steel door leaf with Aluminium frame with triple glazed insulated
windows with sand-blasted pattern. Stainless steel glazing frame,
large stainless steel fixed handles.
Thermo46 & Thermo65 front doors have been purposely made to match with Hormann's range of sectional garage doors. Check these out on our Hormann Secitonal Door pages.
Specifications
Amazingly high specification for the price:
- High thermal insulation 46mm thick door Standard Door or 65mm thick PLUS door filled with CFC-free rigid foam with great u-values (down to 0.87)
- Steel door material - high strength and protection - exclusive appearance
- Aluminium frames
- 12 security points - high security locking system as standard
- Double seals on all four sides plus additional bottom corner seals
- Full thermal breaks on aluminium frames, insulated on THP doors
- Excellent acoustic insulation
- 3-way adjustable hinges for perfect, smooth operation
- Five keys supplied with each door
- Double or Triple glazed - depending on model chosen
- Side Elements and Transom Light (window at the top) are also available, Double or Triple glazed.
- Letter box, spy hole options in some doors and letter box also available in horizontal break in Side Element over 450mm wide.
Sizing information
ThermoPro and ThermoPlus doors come pre-fitted within their own frame therefore the ordering
size refers to the external dimensions of the frame.
Standard sizes:
Doors: 1000mm x 2100m and 1100m x 2100mm
Side Elements: 400mm x 2100mm
Made to measure sizes:
TPS 010, 015, 515, 020, 025, 030, 700, 750, 900: width between 875mm & 1250mm, height between
1875mm & 2250mm
TPS 100, 400: width between 875mm & 1100mm, height between
1875mm & 2186mm
TPS 200: width between 875mm & 1100mm, height
between 1990mm & 2186mm
THP 010, 015, 515, 700, 750, 800,
810, 850, 900: width between 875mm & 1250mm, height between 1875mm &
2250mm
THP 100, 410,430,450: width between 875mm & 1100mm, height between
1875mm & 2186mm
Further
information
For further information please download the Hormann brochure;
https://www.hormann.co.uk/fileadmin/_country/kataloge/pdf/85828-Thermo65-Thermo46_Haus-und_Eingangstueren_EN.pdf
Securety details - page 30-31
Custom equiptment - page 32
Glazing information for doors and side elements - page 33
Handle
designs - page 34
Colours avalible - page 36-37
Sizing and
internal schematics - page 40-41
Warrenty - Hormann offer a full 5-year manufacturers warranty that covers both parts and surface finish. Normal reasonable wear and tear, wilfil damage, etc, is excluded and products must be installed as per installation instructions.
Designs, Styles and Pricing
Call 01342 301811 to place your
order. Delivery is free of charge. Prices include VAT -
Prices for standard doors only.
Delivery is currently 6/8 weeks.
 |
Left: TPS 700 & THP700 (RAL9007,
Gray Aluminium)
Right: TPS 750 & THP750 1000mm Long Stainless steel handle HB 38-2 on steel infill, triple glazed insulated glass, sand-blasted with clear horizontal stripes. Stainless Steel glazing frame. Thermo46 U-value up to 1.2 W/m2K. Thermo65 U-value up to 0.95 W/m2K.
Note: Handles can be reduced to 350mm long or lever/lever for £100 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
Note: Handles can be reduced to
350mm long or lever/lever for £100 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
Left: THP850 only
Right: TPS900 & THP900 in White 1000mm Long Stainless steel handle HB 38-2 on steel infill, triple glazed insulated glass, sand-blasted with clear horizontal stripes. Stainless Steel glazing frame. ThermoPro U-value up to 1.2 W/m2K. ThermoPlus U-value up to 0.95 W/m2K. (see above for prices) Note: Handles can be reduced to 350mm long or lever/lever for £100 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
Left: THP800 only
Right: THP810 only 1000mm Long Stainless steel handle HB 38-2 on steel infill, triple glazed insulated glass, sand-blasted with clear horizontal stripes. Stainless Steel glazing frame. ThermoPlus U-value up to 0.99 W/m2K.
Note: Handles can be reduced to 350mm long or lever/lever for £100 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
Left:
TPS 010 & THP 010 in White
Right: TPS 515 & THP 515
Note: Handles can be upgraded to 1000mm long or lever/lever for £100 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
Left:
TPS015 & THP015
Right: TPS025 only
Note: Handles can be upgraded to 1000mm long or lever/lever for £100 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
TPS015 & THP015 in Titan Metallic with
optional stainless steel look embelishments Note: Handles can be upgraded to 1000mm long or lever/lever for £100
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
Left:
TPS010 & THP010 in Anthracite Gray Right: TPS020 only
Note: Handles can be upgraded to 1000mm long or lever/lever for £100 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
Left:
TPS030 only
Note: Handles can be upgraded to 1000mm long or lever/lever for £100 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
Left:
TPS100 & THP100
Right: THP410 only
Note: Handles can be upgraded to 1000mm long or lever/lever for £100 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
Left:
TPS200 only
Right: TPS400 only
Note: Handles can be upgraded to 1000mm long or lever/lever for £100 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
Left:
THP430 only
Note: Handles can be upgraded to 1000mm long or lever/lever for £100 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

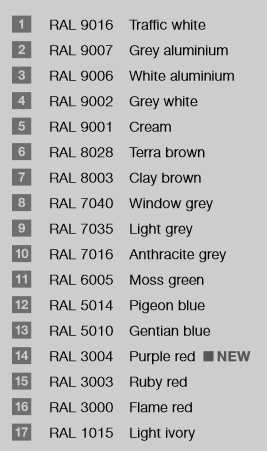

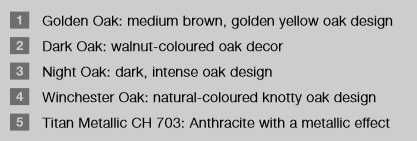

Notes on colours: Dark colours should not be used on doors that are exposed to the sun, as an increased material expansion may impair the doors function. THP 450 only available in Traffic White. THP 100, 410, 430, and TPS 100, 200, 400, are not available in Decograin finishes. TPS 020, 025, 030 and 400 polycarbonate glazing frames painted to match door colour. The internal colour will be the same as the external colour, however; THP 010, 015, 515, 700, 750, 800, 810, 850 and 900 - Golden Oak, Dark Oak and Titan Metallic can be specified with a Traffic White inside (+£100). Frame colours - all Thermo 46 and Thermo 65 doors can have the frame a different colour to the door. Special colours are not available in the Thermo 46 or Thermo 65 doors. |
Accessories and upgrades
Accessories
Top Transom Lights available - call for prices
Letterbox in door: £75 (letter boxes
available in middle bar of side elements - call for prices)
Spyhole in door (pre-fitted): £50
Door drip
in stainless steel look: £50
Electric Strike: £80
Handles
Long stainless steel (1000mm) and short stainless steel (350mm) handles
(on doors as specified above) can be swapped for £110 inc VAT. They can
also be replaced with a ES0 lever/lever stainless steel handle for £110 or
swapped for ES1 lever/lever stainless steel handle for £280.
Please see the brochure above for examples.
Locking
Various security enhancements and key also available
- please contact us for more information.
Electric locking is available controlled either by
remote control, finger scanner or number pad on THP doors.
Proximity sensor unlatching is available on the THP
doors
Frame Extensions
Frame extensions in 25mm or 50mm widths for
ThermoPro or 50mm only for ThermoPlus. Can be used at the
sides or across the top.
Sills
As standard doors come with low
threshold for disability access but if you are renovating you may
need a sill. We can supply the following: Sapelle,
Sapelle cloaked in stainless steel, Oak, Aluminium (white, black,
Anthracite). Hormann also sell various spacers that can fit
under the thresholds.
TPS015, 515, 025
and THP015, 515 can have stainless steel look lines inserted into
the shallow ribs on the doors - either the full width or 118mm
lengths fitted to either side. £160 inc VAT (515 design £110
inc VAT)
Secure By Design
Secured by Design in conjunction with the Association of Chief Police Officers, is a security upgrade to help combat crime. The fully accredited door will come
supplied with a high security cylinder complete with registration card and 3 security keys.
£100 inc VAT.

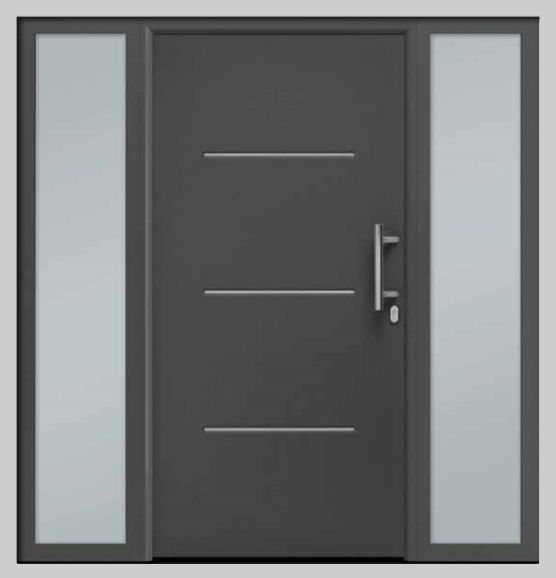

Side Elements
Available either with glazing in a finish to match your door or
in solid infill (see deign example below, and in the Hormann brochure
above).
